NMD BODYBOARDS Nexus Quad Concave Polypro Core - 2022/23 Model

NMD NEXUS X4 KINETIC GRIPTECH
The Nexus is an all out speed machine designed for the progressive wave shredder who likes to use the full face of the wave.  The Nexus template has slightly more curve with a smooth transition from wide-point to the nose and tail for a looser, on wave feel.

Featuring our all-new X4 MiniQuad concave designed to hold tight when driving off the tail then release instantly for super quick transitions. New GripTech thermoformed textured grips promote superior wax buildup for enhanced hand traction.  Designed withShape3d CAD software, Shaped with CNC and AKU technology. Hand-finished and ready to fly.

FEATURES:
CORE: Kinetic Polypro
Kinetic Polypro Core is a state of the art engineered bodyboard core. A lightweight core that is fusion formed to create a nucleus that delivers incredible flexural properties,
including instant recoil, added projection, enhanced longitudinal stiffness & awesome compression strength. This core is100% waterproof.Constructed from premium grade 1.9lb density Polypropylene resins, Kinetic Core delivers amazing projection and response as a result of high pressure cell-fusion created during the blank manufacturing process. Kinetic Core is a warm water core available in various reinforcement configurations, each tuned-in for specific wave condition.
CONCAVE: X4 Mini Quad Concave
The X4 MiniQuad takes the key design factors of our groundbreaking full-length QuadConcave and shrinks it down, focusing on the back half of the board. Starting below the wide-point, the X4 essentially splits the hull in two, combining the glide and flow of a flat bottom with the drive and directional control of the QuadConcave.  The X4 MiniQuad is designed to excel in small to medium size surf and for quicker transitions closer to the pocket of the wave.
The Quad Concave is precision shaped on our custom built AKU CNC shaping machine.
The AKU gives us the ability to design progressive channel and concave set-ups with incredible accuracy and consistency previously not possible by hand shaping.
STRINGER: Single CFT Stringer
DECK: Wavecushion 8lb PE Deck with Q12 Backing
SLICK: Surlyn Slick. Surlyn slick bottom skin is constructed from 1mm Dupont Surlyn backed with a composite layer of 1.5mm IXPE + 1.5mm IXPP for a total thickness of 4mm.
TAIL: Clipped Crescent Tail

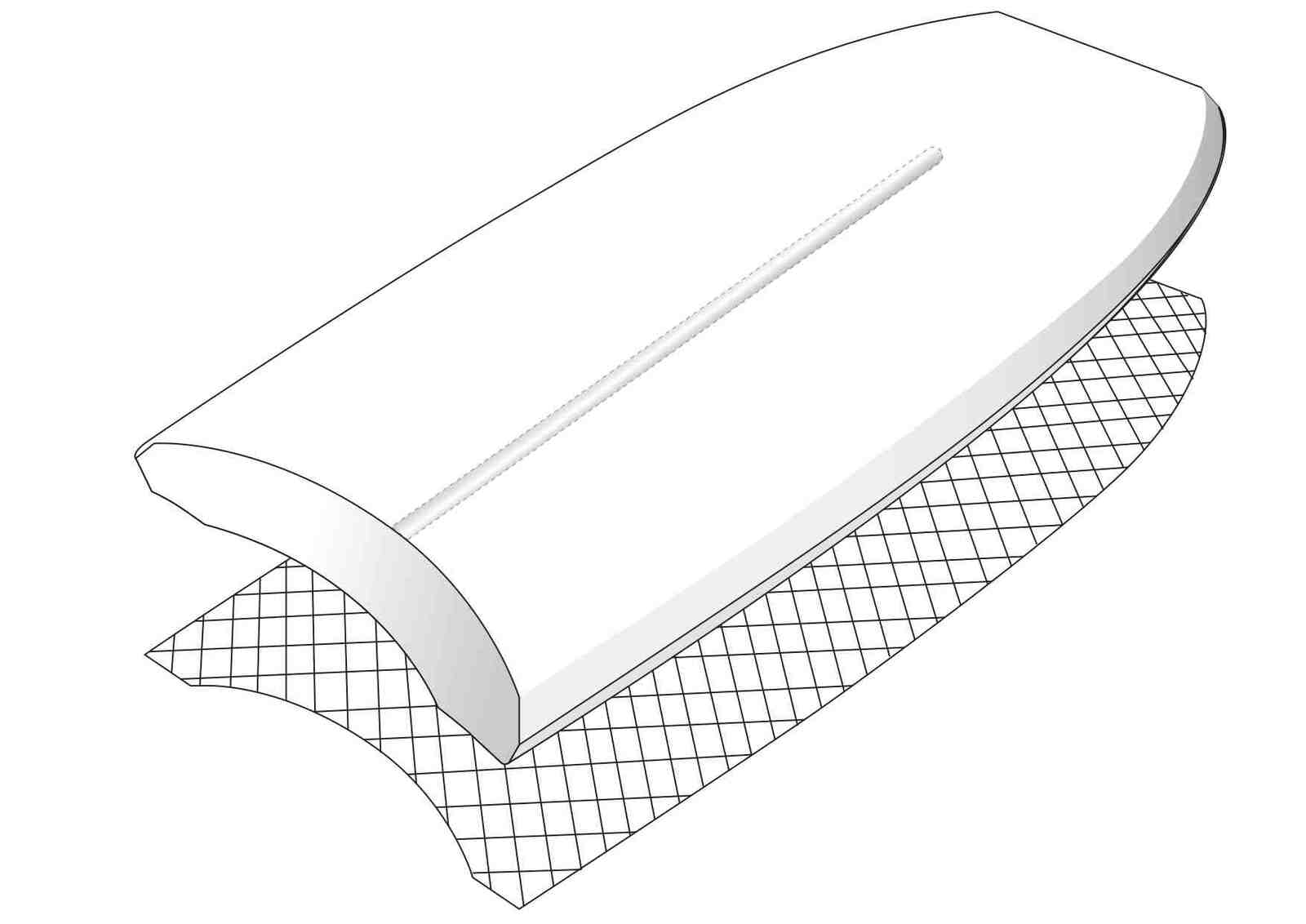

REACT MESH: Diamond shaped slick mesh weave fused between the boards core and slick bottom skin for enhanced stiffness and recoil.
ADDITIONAL FEATURES: Nexus Template, Nexus Griptech Deck Skin55/45 Double rails, XFL Nose & Tail Armour, Bull Grips, Hand Finished, CNC Shaped, Buzz Tech Lamination.

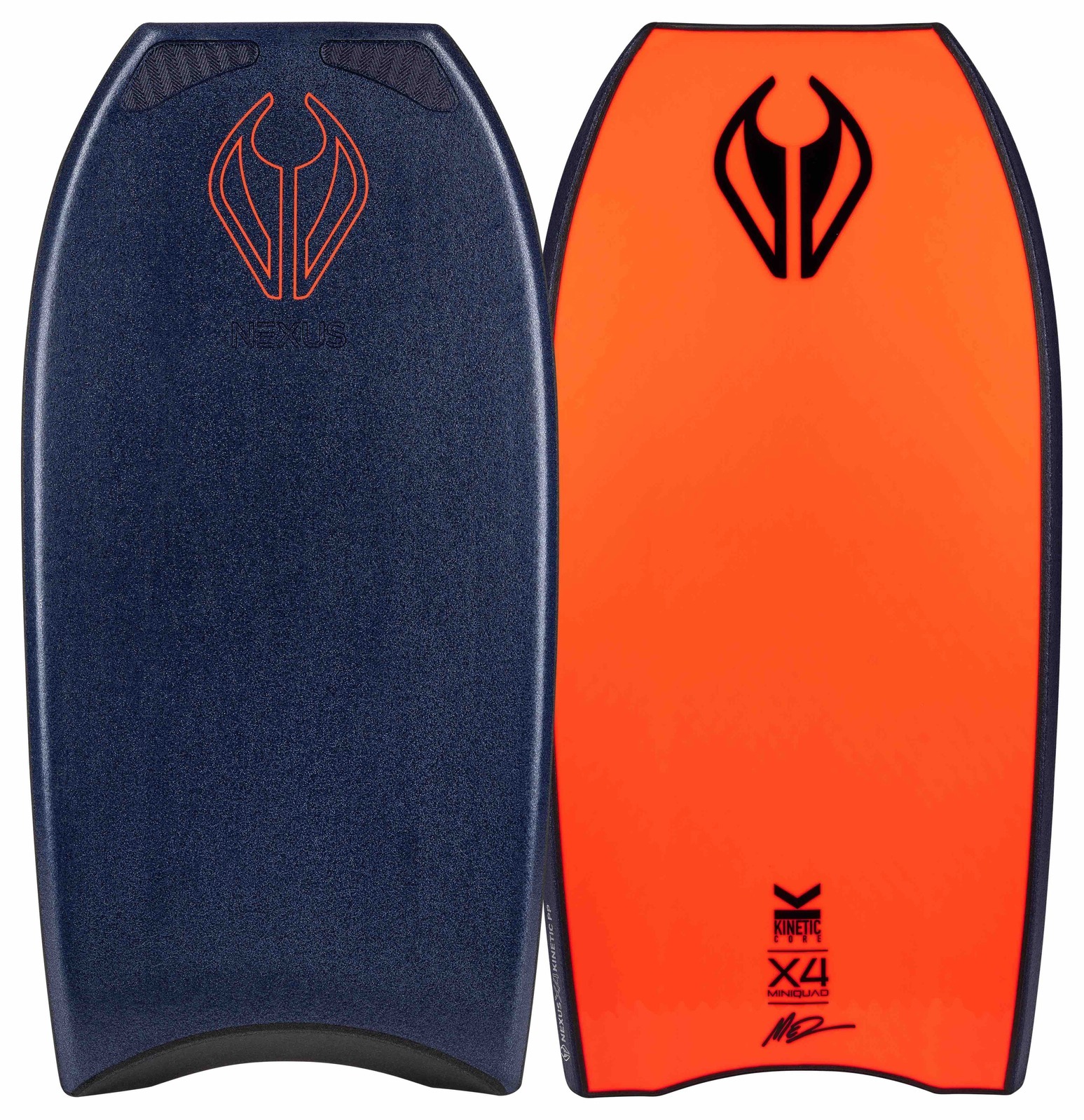

COLOURWAYS
Midnight Deck// Black Pinline// Midnight Rails// Orange Slick
Black Deck// Black Pinline// Black Rails// Turquoise Slick

Here's BP on his NMD's

(642466)

SKU 642466_642467
Barcode # 676307310618
Brand NMD BODYBOARDS
Shipping Weight 2.5000kg
Shipping Width 0.570m
Shipping Height 0.070m
Shipping Length 1.050m
Shipping Cubic 0.041895000m3
