FOUND BODYBOARDS MR Ltd Quad Concave Polypro Core - 2025 Model
Board Tech Guide
Found Bodyboards MR Ltd uad Concave Polypro Core Bodyboard 2025 Model
Riding Experience:
The board’s combination of a traditional crescent tail and bottom quad concave design, along with a smooth straight edged template, creates a engaged feel as you flow into turns and makes transitions smooth whether you’re scooping into thick pits or gunning to that next section. The board handles well in small and larger conditions, providing fluid control and speed that riders can depend on in short slabbing waves or long point breaks.
Design Focus:
The crescent tail enhances manoeuvrability, drive and delivering a locked in feel for added control in small to large size waves, while the concave quad channels water through the centre to increase speed, stability, lift and responsiveness.
Sizes. 41.5 // 42 // 43"
FEATURES:
CORE: 1.9lb Polypro Core
Polypro Core is a state of the art engineered bodyboard core. A lightweight core that is fusion formed to create a nucleus that delivers incredible flexural properties,
including instant recoil, added projection, enhanced longitudinal stiffness & awesome compression strength. This core is100% waterproof.Constructed from premium grade 1.9lb density Polypropylene resins, Kinetic Core delivers amazing projection and response as a result of high pressure cell-fusion created during the blank manufacturing process. Kinetic Core is a warm water core available in various reinforcement configurations, each tuned-in for specific wave condition.
CONCAVE: Quad Concave
The Quad Concave can be broken down into two parts:
1. Central Double Concave - Tracks laminar (water) flow through the centre of the board keeping you higher on the wave face, which allows you to generate more speed into your bottom turns.
2. Outer Venturi Channels - Draws the laminar flow from a wider entry point into a narrow exit through the tail. Based on Bernoulli’s principle, the laminar flow increases in speed as it progresses through the channel, giving you more drive.
The Quad Concave is precision shaped on our custom built AKU CNC shaping machine.
The AKU gives us the ability to design progressive channel and concave set-ups with incredible accuracy and consistency previously not possible by hand shaping.
STRINGER: 2 x CFT Stringer
High-grade, lightweight filament wound composite-fibre tube for increased board strength and spring-like recoil.
DECK: Wavecushion 8lb PE Deck with Q12 Backing
SLICK: Surlyn Slick. Surlyn slick bottom skin is constructed from 1mm Dupont Surlyn backed with a composite layer of 1.5mm IXPE + 1.5mm IXPP for a total thickness of 4mm.
SLICK MESH: Diamond shaped slick mesh weave fused between the boards core and slick bottom skin for enhanced stiffness and recoil.
TAIL: Clipped Crescent Tail
ADDITIONAL FEATURES: MR Signature Template, XFL Nose & Tail Armour, Nose Bulbs, CNC Shaped,

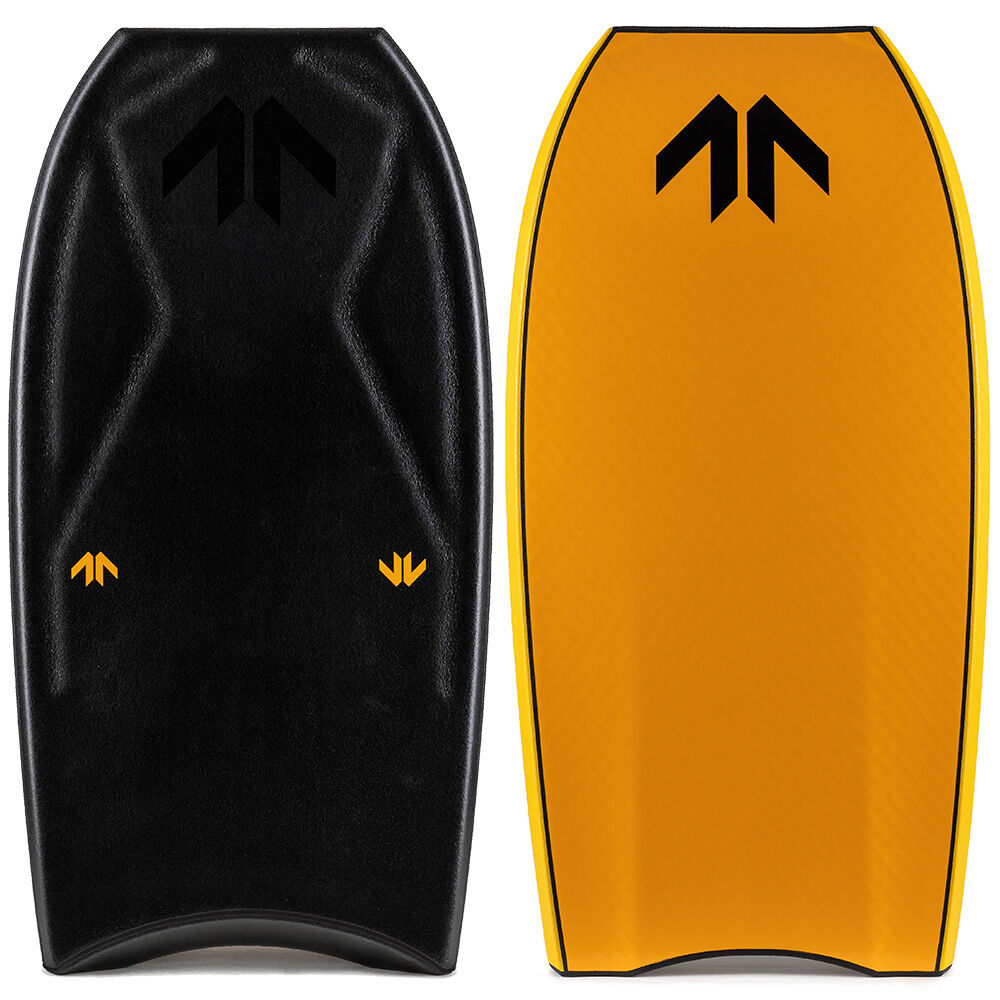

COLOURWAYS:
Black Deck// Black Pinline// Oramge Rails// Orange Slick
Midnight Deck// Red Pinline// Black Rails// Electric Blue Slick
Here's a clip of Mitch Riding his Found Boards.
(649726)
SKU | 649726_649727 |
Shipping Weight | 2.5000kg |
Shipping Width | 0.570m |
Shipping Height | 0.070m |
Shipping Length | 1.050m |
Shipping Cubic | 0.041895000m3 |
